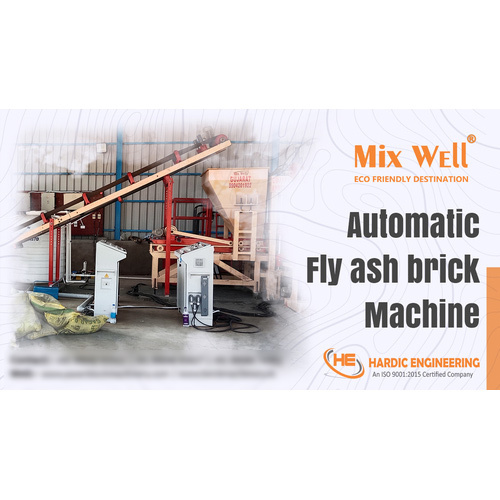

Fully Automatic Heavy Duty Fly Ash Brick Making Machine

Product Description

Fully Automatic Fly Ash Brick Making Machine is made by using advanced designing technique under the guidance of our dexterous professionals keeping in mind the set quality norms Further it is tested on different quality parameters in order to provide defect free range to our valued customer end This brick making machine requires less investment and high return in terms of productivity and has simple structure and easy to operate Our offered Fully Automatic Fly Ash Brick Making Machine has a smooth surface for seamless functioning and long working life with easy wear spare parts

Product details

Belt Conveyor Width


500 mm

Automation Grade


Automatic

Capacity bricks per hour


20002500

Brick Type


Solid

Method


Hydraulic Pressure

Vibrator


2 HP

Tolerance


05 mm

Total Weight


3500 kg

Total Power


30 HP

Taper conveyor


2 HP

Side Wall Height


550 mm

Pressing


Dia 150300 mm

Pan Mixer Capacity


300600 Kgs Batch

Pan Mixer


75 HP X 2 NOS

Motor


1440 rpm

Mixer Speed


24 rpm

Hydraulic


10 HP

Crushing Rollers


02 Nos

Conveyor Belt Thickness


8 mm

Bricks Size


230 X 110 X 75 mm

Technical Specification



Particulars


Dimension

Overall Dimension


10 X 45 X 36 METER

Pallet Size


550 X 550 X 18 MM

Brick Per Stroke 230 X 110 X 75 Mm


8

Frequancy Of Vibrater


75 95 Hz

Cycle Time


2025 SEC

Installed Capacity Kw HP


335 HP

Belt Conveyor


21 FOOT

Pan Mixer 350 Kg 02 Nos


1500 MM X 500 MM

Hydraulic Tank Oil Capacity


200 LITER

Maximum Excitation Force


40 45 KN
